CFL6R Floor Standing Refrigerated Centrifuge with Eco-friendly R404a Refrigerant, Stainless Steel Panel, and GMP Compliance for Blood Bank and Laboratory Use

Name: CFL6R Floor Standing Refrigerated Centrifuge with Eco-friendly R404a Refrigerant, Stainless Steel Panel, and GMP Compliance for Blood Bank and Laboratory Use
Brand: Changsha CenLee Technology Co., Ltd,
SKU: CFL6R
Price: 50,000,001.00 USD
Availability: InStock

Nama merek:	Cenlee
Nomor Model:	CFL6R
MOQ:	1

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Hunan, Cina

Kecepatan Max:

6000R/mnt

Max RCF:

6680×g

Kapasitas maksimal:

6000ml

Akurasi kecepatan:

±20r/menit

Kisaran suhu:

-20 ℃ ~+40 ℃

Akurasi suhu:

± 1 ℃

Kekuatan:

5.5kw

Catu daya:

AC 220V 50Hz20A

Kebisingan mesin:

≤65db (a)

Ukuran:

830×720×1250mm

Berat bersih:

268kg

Penggerak Motor:

Motor yang dikonversi frekuensi

Jenis rotor:

Rotor sudut, Ayunkan rotor keluar

Kapasitas rotor:

6×300ml, 6×500ml, 6×1000ml

Kecepatan rotor:

6000r/menit, 4200r/menit

Menyoroti:

Eco-friendly R404a Refrigerant Centrifuge

Stainless Steel Panel Centrifuge

GMP Compliance Blood Bank Centrifuge

Deskripsi Produk

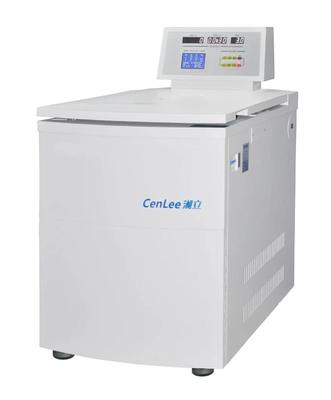

CFL6R Floor Standing Large Capacity (6x1000ml) Refrigerated Centrifuge

The CFL6R is a preparative large-capacity refrigerated centrifuge designed for high-performance separation applications in various industries.

Product Advantages

Flexible anti-friction system reduces wind resistance for faster acceleration to maximum speed
Eco-friendly R404a refrigerant system for fluorine-free, high-efficiency refrigeration
6L large capacity separation capability
Customizable stainless steel panel control box meeting pharmaceutical industry GMP requirements
Ideal for radioimmunoassay, biochemistry, pharmaceutical applications, and blood product separation/purification

Key Features

User-friendly touch panel with LED digital or LCD display for real-time parameter adjustment
High-power brushless frequency conversion motor with European ultra-high speed bearings
Advanced frequency conversion speed controller for precise operation
Imported compressor unit with precise temperature control (±1℃), low vibration and noise
Programmable operation with storage for 9 user-defined programs and 40 custom working modes
Pre-cooling chamber design for fast cooling and efficient operation
Comprehensive safety system including double door lock, over-temperature/speed protection, and self-diagnosis
Pulse function for short centrifugation cycles

Technical Specifications

Model	CFL6R	Cryogen	R404a
Maximum speed	6000r/min	Acc/Dec time	Customizable
Maximum RCF	6680×g	Timing range	0-999min
Maximum capacity	6000ml	Power	5.5KW
Speed accuracy	±20r/min	Power supply	AC 220V 50Hz 20A
Temperature range	-20℃~+40℃	Noise level	≤65dB(A)
Temperature accuracy	±1℃	Dimensions	830×720×1250mm
Motor drive	Frequency converted motor	Net weight	268kg

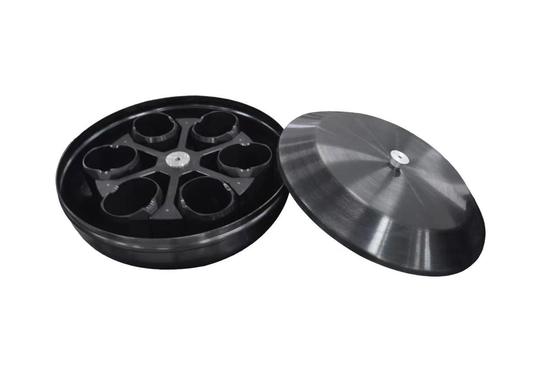

CFL6R Rotor Specifications

Rotor type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main machine	CFL6R		6000	6680
Angle rotor	NO.1	6×300ml	6000	5650
Angle rotor	NO.2	6×500ml	6000	6680
Swing out rotor	NO.3	6×1000ml	4200	5100
